NPN LJ12A3-4-ZBX DC 6-36V 3D Printer Accessory Inductive Switch V
Description of NPN LJ12A3-4-ZBX Inductive Switch :
Product name: Inductive Switch
3 Wires
Protection level: Ip65
Output indicator: LED Red
Working temperature: -25~70℃
Dimension: M12x10x55mm
Sensing distance: 4mm
Output state: normally open
Detection Objects: Conductor
Connection: 1.2m, PVC cable
Wire Length: 120 cm
type: NPN
Usage: for 3D printers
Appearance Type switch: Cylinder Type
Power voltage: DC 6-36 V
Features of NPN LJ12A3-4-ZBX Inductive Switch :
1. This is an inductance proximity switch especially for 3D printer.
2. Red LED indicates that it is available to detect the operation status of the sensor. With IP65 protection.
3. When the proximity switch is near some target object, it will send control signal.
4. Widely used in the industry of machine tool, frequency counters and other automatic control system.
5. It is a component widely used in the industry of automatic control to detect, control, and switch without contact.
Product parameters:
| Voltage | DC 6-36V |
| Output current | 300mA |
| Polarity | NPN |
| Switching frequency | 500 Hz |

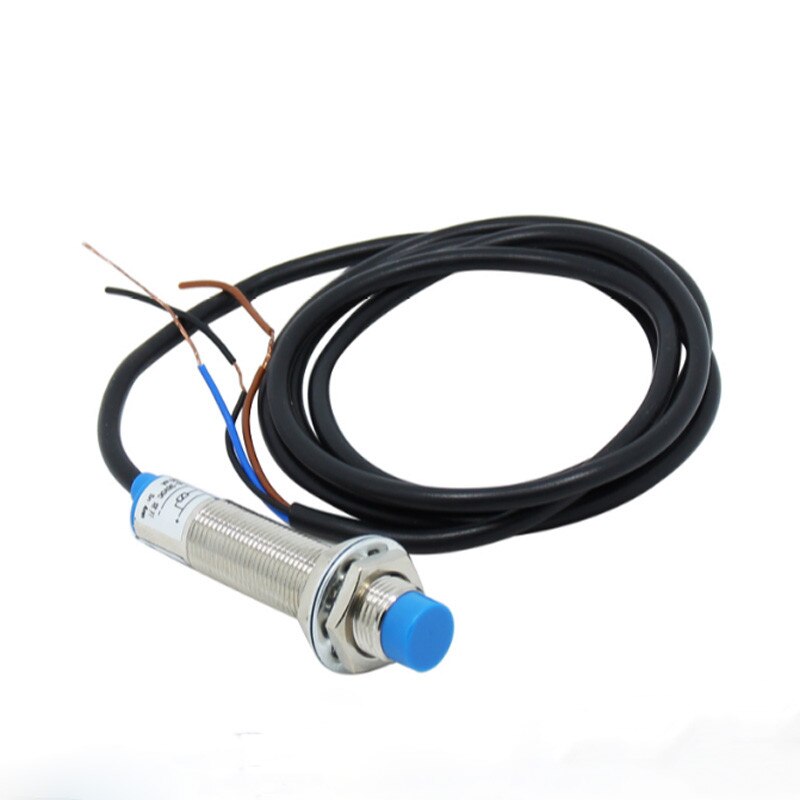

Pictures of Inductive Switch :
